| Model |

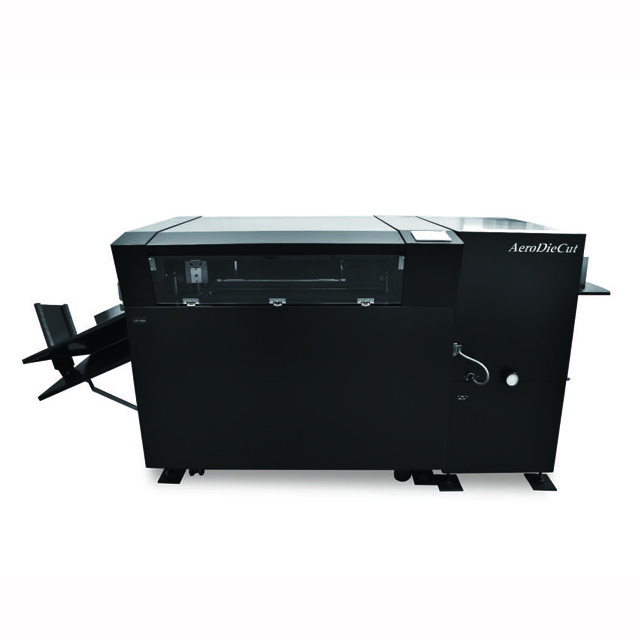

AeroDieCut |
| Machien Type |
Auto-feed platen die cutter |
| Feedable paper size (WxL) |
297(W)x420(L) - 365(W)x515(L) mm |
| Minimum fnished size (WxL) |
310(W)x485(L) mm |
| Paper weight |
120-*400 gsm
*Depending on paper quality |
| Operation |
4" colored touch screen |
| Job memories |
100 job memories |
| Feeding mechanism |
Upper belt tri-suction feed (Patented) Side blow
Skew adjustment
Side aligner
Ultra sonic double feed detection Cut mark registration
Feed tray stacking capacity 100mm |
| Speed |
1,000 sheets/hour |
| Dimensions (WxDxH); Weight |
2,700(W)x1,070(D)x1,100(H) mm; 410 kg |
| Power supply; Consumption |
100-120V or 200-240VAC, 50/60Hz single phase, 400W |
