DOCUMENT SHREDDER EBA 5141

Price: Call
Document shredder EBA 5141 series are extremely powerful office shredders with electronic capacity control and an automatic oil injection system for a consistently high shred performance. Available from P2-P7 grades.
Call: 0902 886 117 - (028) 2253 2772 for advice and purchase.



Top model Office type German Made Shredder



SPS – (Safety Protection System) package: patented, electronically controlled, transparent safety flap in the feed opening as additional safety element; EASY-SWITCH – intelligent control element indicating the operational status of the shredder with varying color codes and back-lit symbols; automatic reverse and power cut-off (avoids paper jams); automatic stop if the shred bin is full; electronic door protection via a magnetic proximity switch; double motor protection; ZERO ENERGY standby mode: Complete, automatic disconnection from power supply after 15 minutes. Photo cell controlled automatic start and stop. Patented ECC – Electronic Capacity Control: indication of the used sheet capacity during the shredding process. Automatic oil injection on the cutting shafts during shredding operation for constantly high shred performance. Convenient 405 mm feed opening. High-quality, paper clip-proof cutting shafts from special hardened steel with a lifetime guarantee (not applicable for models with 0.8 x 12 mm micro cut or 0.8 x 5 mm super micro cut). Strip cut and particle cut models suitable for shredding the most common CDs/DVDs. Quiet but powerful single-phase motor for continuous operation. Sturdy chain drive and fully closed gearbox housing. High-quality wooden cabinet, mobile on castors. Convenient environmentally-friendly shred bin (no disposable shred bags required).

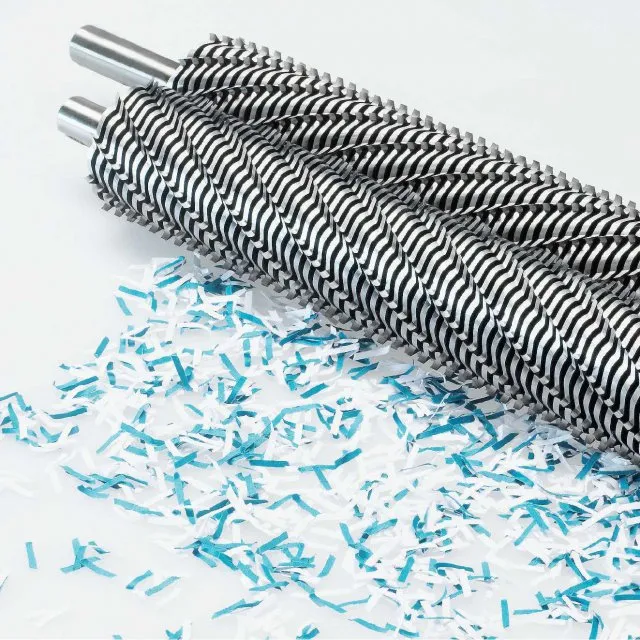

SOLID STEEL CUTTING SHAFT
Robust and durable: high-quality paper clip-proof cutting shafts with 10 years guarantee under conditions of fair wear and tear (except fine cut models MC and SMC).



PATENTED SAFETY FLAP
Extremely safe: electronically controlled safety flap in the feed opening to keep fingers, ties, or other objects away from the cutting shafts.

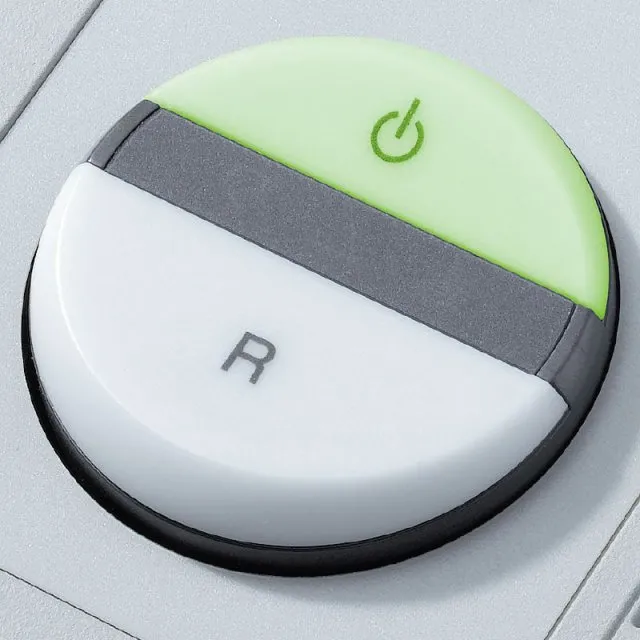

EASY SWITCH
Ease of operation: intelligent multifunction switch element with integrated optical signals indicating the operational status. Additional “emergency switch” function.



ECC – ELECTRONIC CAPACITY CONTROL
This electronic feature indicates the used sheet capacity during the shredding process to avoid paper jams. Tried and tested: Reliable printed circuit board controlling all automatic functions of the shredder including the energy-saving mode.



ELECTRONIC OIL INJECTION
The automatic oil injection system lubricates the cutting shafts when shredding and guarantees a constantly high shred performance



EBA 5141 is the top model for office-use document shredder in the EBA line-up and helps a lot for high volume and continuing paper shredding jobs with ease and less stresses.

Model 5141 S 5141 C 5141 C 5141 CC 5141 CCC
Feed opening, mm 405 405 405 405 405
Shredder type strip cut cross cut cross cut fine cut fine cut
Shred width, mm 6 4 x 40 2 x 15 0.8 x 12 0.8 x 5
Performance in sheets, A4 paper 70 g/m2 50-55 40-45 25-30 15-17 10-11
Performance in sheets, A4 paper 80 g/m2 42-47 34-39 21-26 13-15 8-9
Security ISO / IEC 21964 (DIN 66399) P-2 P-4 P-5 P-6 P-7
Shreds also credit cards
CDs/DVDs
diskettes
credit cards
CDs/DVDs
diskettes
credit cards
CDs/DVDs
- -
Paper clip proof solid steel cutting shafts - -
Cutting shaft warranty for 10 years - -
Automatic oiler standard standard standard standard standard
Shred speed, m/sec. 0.19 0.15 0.15 0.15 0.18
Volume of cabinet in litres 210 210 210 210 210
Shred bin volume in litres 165 165 165 165 165
Power connection, volts / Hz (single phase)
1
230 / 50 / 1~ 230 / 50 / 1~ 230 / 50 / 1~ 230 / 50 / 1~ 230 / 50 / 1~
Motor capacity, W 1600 1600 1600 1600 1600
Automatic start/stop via photo cell
ECC – Electronic Capacity Control
Control element EASY-SWITCH EASY-SWITCH EASY-SWITCH EASY-SWITCH EASY-SWITCH
SPS Safety Protection System:
– Patented safety flap in the feed opening electronic electronic electronic electronic electronic
– Automatic reverse / automatic power cut-off
– Automatic cut-off if shred bin is full
– Electronic door protection
– Double motor protection
– Zero energy standby mode
Awarded the “Blue Angel“2
High quality wooden cabinet, mobile on castors
Dimensions, mm (H x W x D) 1010 x 640 x 590 1010 x 640 x 590 1010 x 640 x 590 1010 x 640 x 590 1010 x 640 x 590
Weight, kg 115 115 115 115 115
